Hybrid Color Laser Engraving

;
Solutions Industries Media Company

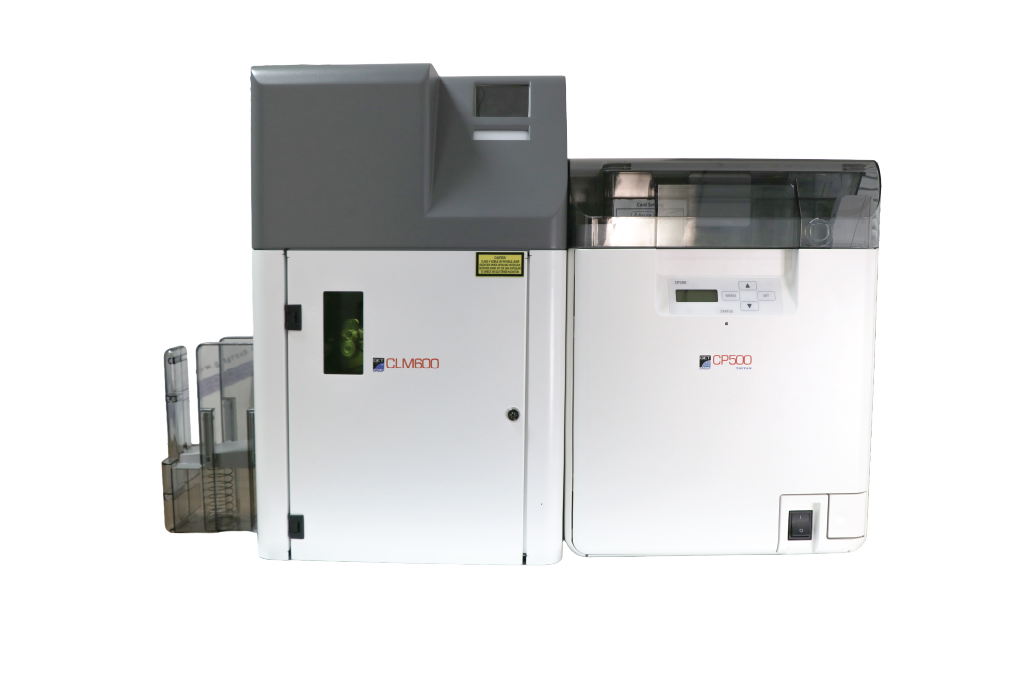

CP500LE-featured

Explore CP500LE

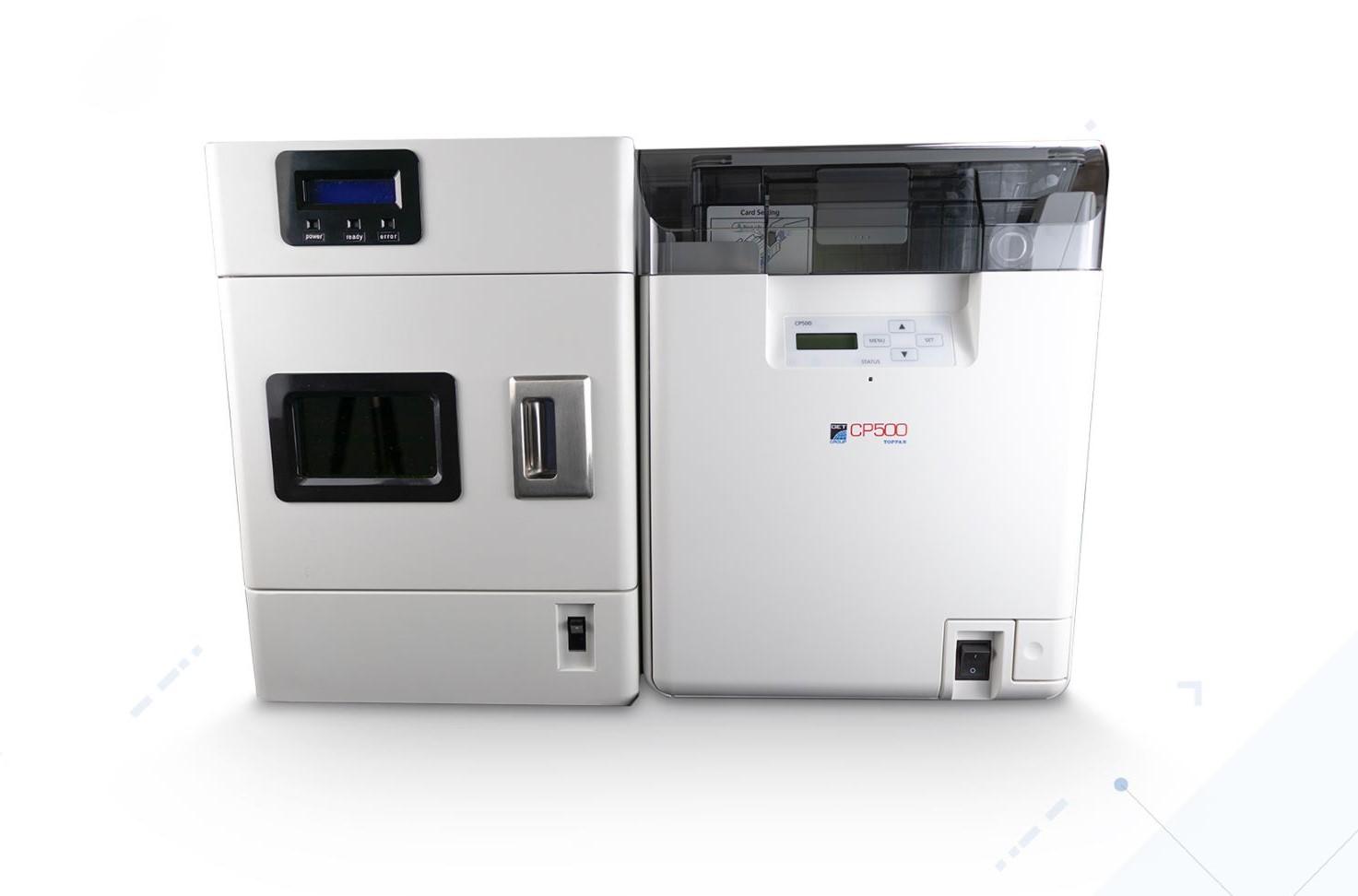

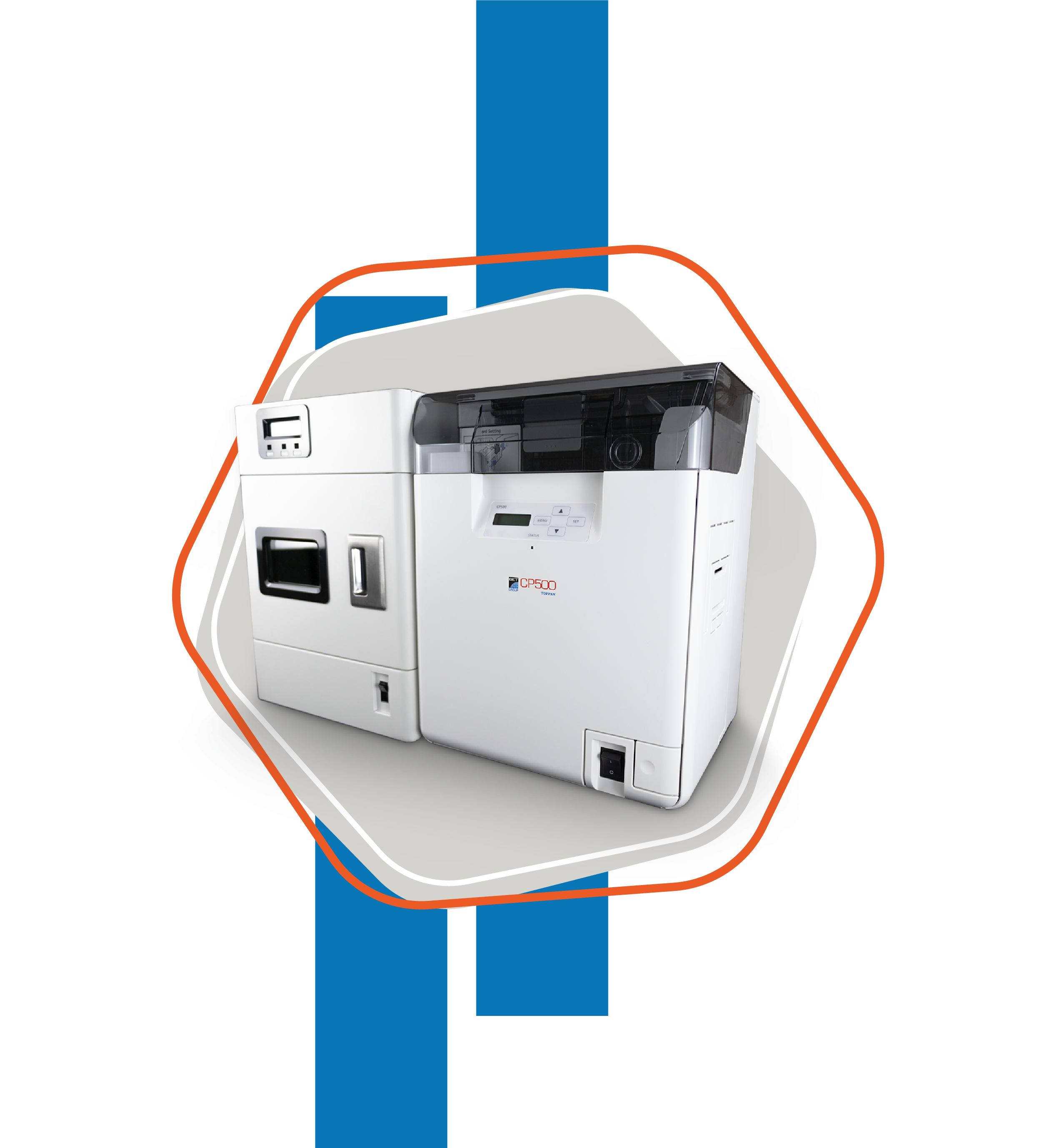

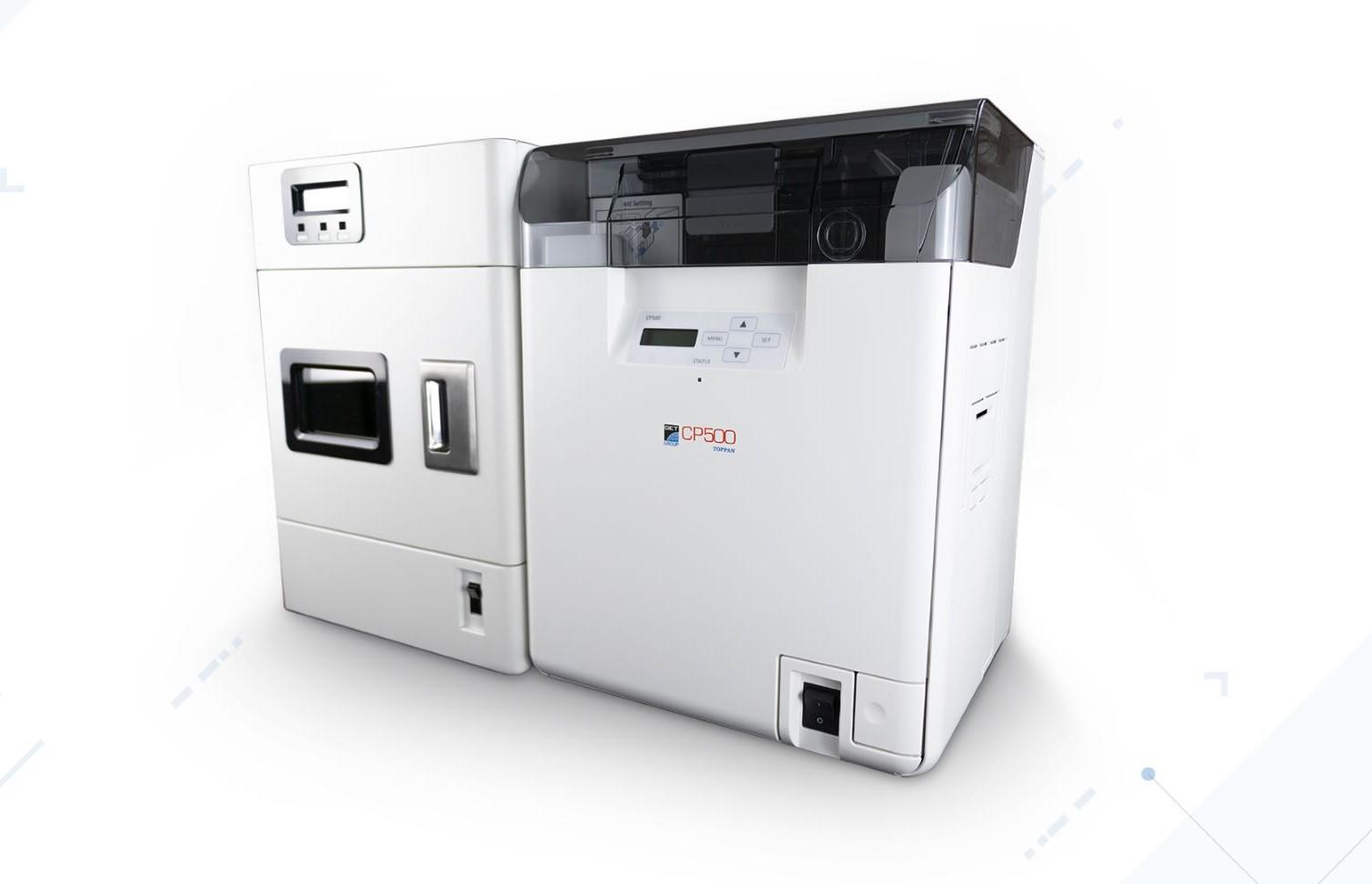

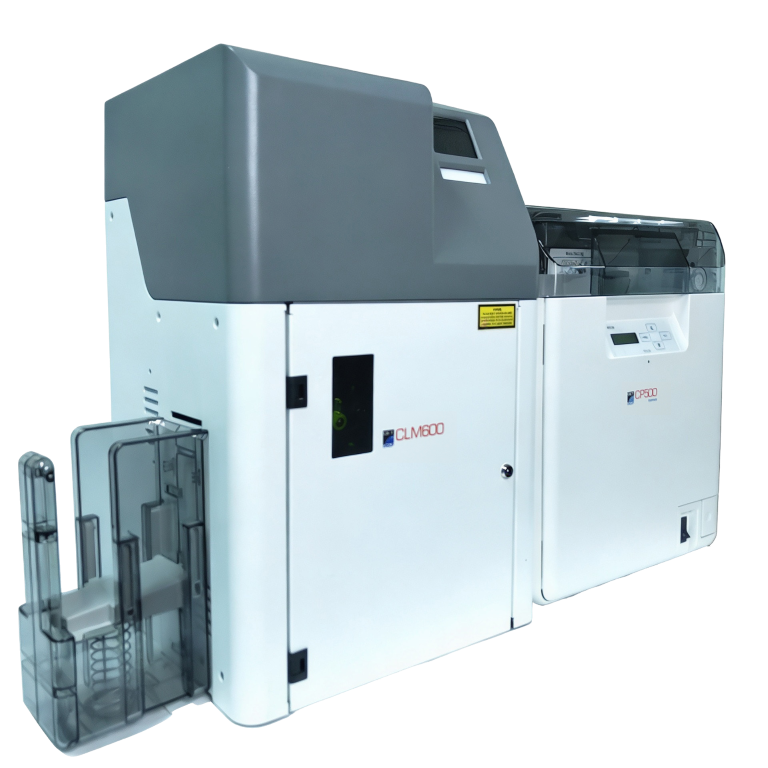

The CP500LE is an integrated card personalization solution that combines retransfer printing with laser engraving technology to produce secure color polycarbonate government ID cards with custom holographic foils and complex security features that cannot be manipulated or substituted.

Main Features

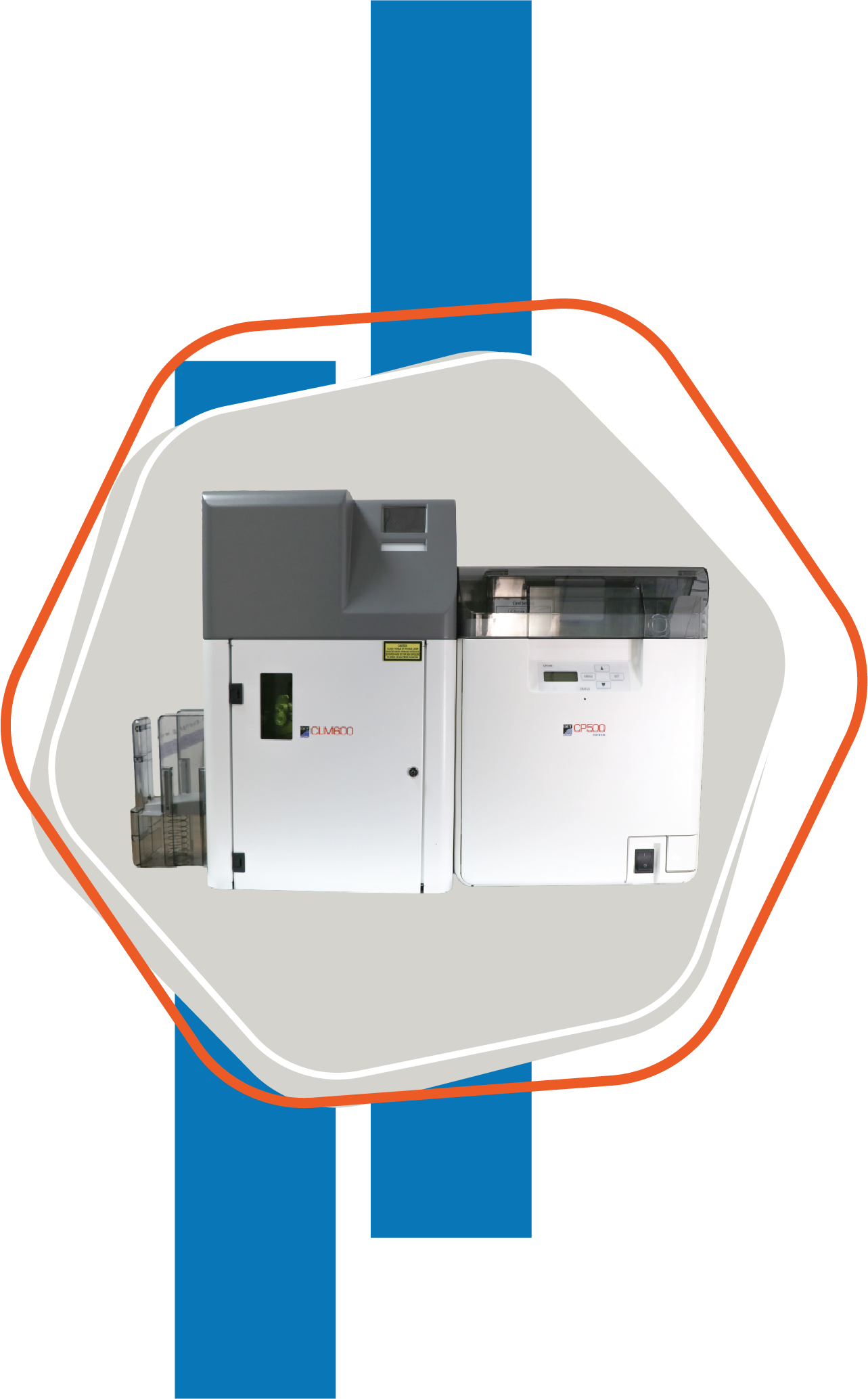

CP500LE-highlights
  • Hybrid Printing Technology

    Hybrid Printing Technology

    The CP500LE combines laser engraving technology with retransferring in a unified personalization process

  • Long-Term Document Durability

    Long-Term Document Durability

    The combination of the fade resistant solid pigment ink with the outstanding durability of laser engraving produces an everlasting document durability.

  • Advanced Security

    Advanced Security

    Empowers personalized cards with unique and superior security features taking the advantage of both personalization technologies to stay ahead of the forgers.

  • Simple Document Verification

    Simple Document Verification

    Unique dot-on-dot forensic print pattern, CLI/MLI, window and tactile features that facilitate verification and authenticity for personalized Cards.

Solution Features

Inline Secure Personalization

Inline Secure Personalization

An Integral and uninterrupted personalization process capable to perform single step automated operation for encoding, color printing and laser engraving.

Color with Polycarbonate

Color with Polycarbonate

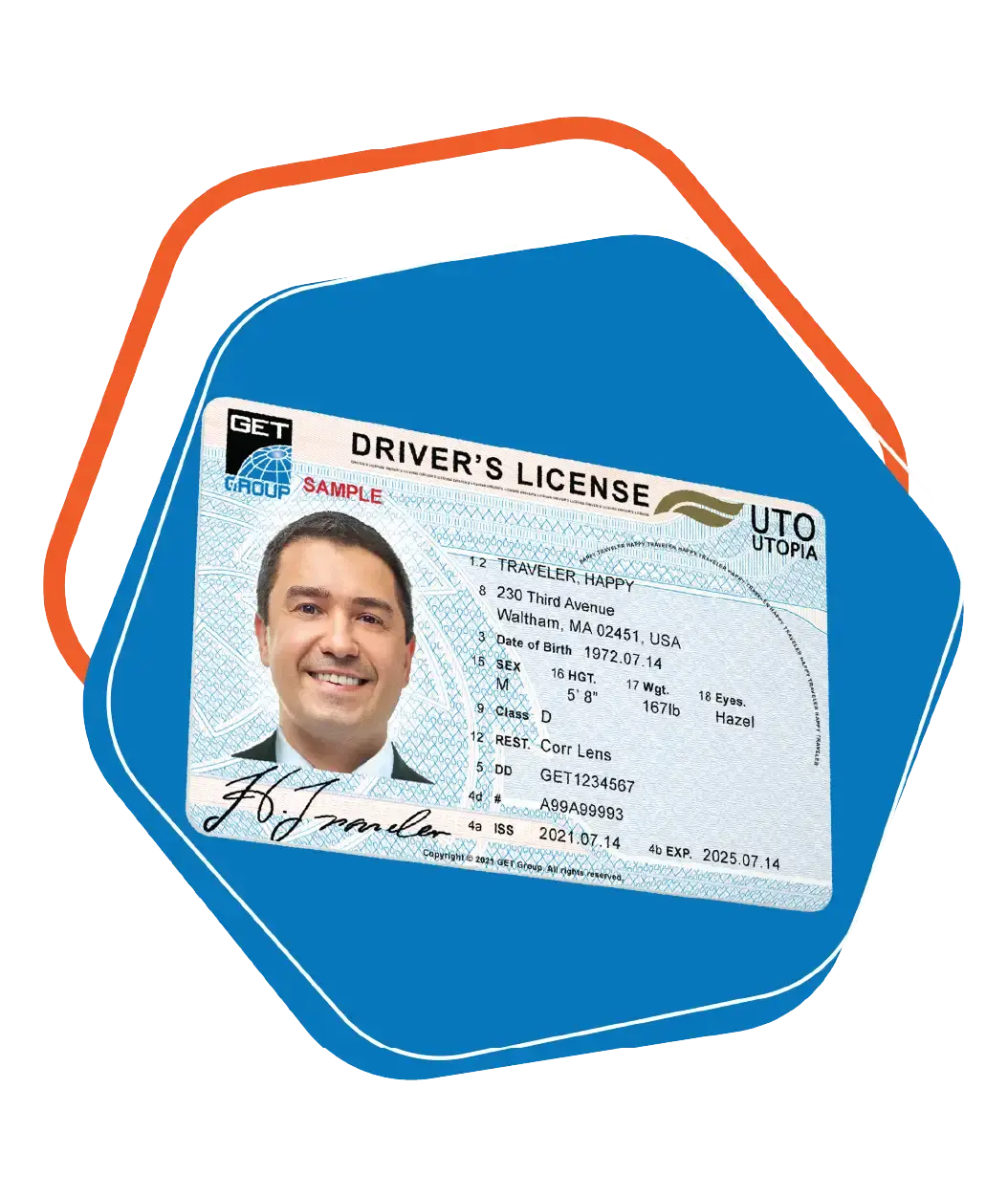

Personalized ID Cards with high Image Quality of 600dpi full color and laser engraving.

Personalization Speed

Personalization Speed

The CP500LE prints and engraves simultaneously in batch mode to provide streamline production.

Issuance Mode

Issuance Mode

Flexible to meet various production needs with decentralized adaptation to lower the risk of failure and centralized issuance through GET print management application.

CP500LE IN ACTION

Specifications

Printer

Printer

Thermal Retransfer Technology

Ink

Ink

Solid Pigment Inks

Print Mode

Print Mode

Dual-Sided

Color Standards

Color Standards

UL, CE, FCC, VCCI, CCC

Smart Card Encoding

Smart Card Encoding

Contact, contactless, and magnetic stripe.

Card Material

Card Material

Polycarbonate and other laser composite

Laser

Laser

2W DPSS Laser Type

Card size

Card size

ISO 7810 10-1 size

Batch Speed

Batch Speed

120 card/hour single side

Input Hopper

Input Hopper

250 cards

Output Hopper

Output Hopper

250 cards

Connectivity

Connectivity

USB 2.0 and Ethernet

OS

OS

Windows 7, B, B. 1 , 10 (32 & 64 bit)

Laser Standards

Laser Standards

UL, CE, EMC, RoHS (Class 1 Laser Safety)

Operating environment

Operating environment

Temperature 15 to 30 ° C / Humidity 20% RH to 80% RH

Dimensions

Dimensions

Length 754mm, Height 435mm, Depth 455mm

Weight

Weight

52.5 kg (Laser and Printer)

Power Supply

Power Supply

AC 1 00 to 240 V 50/60 Hz automatic switching

Warranty

Warranty

2 Years
