Secure ePassport Personalization for Government

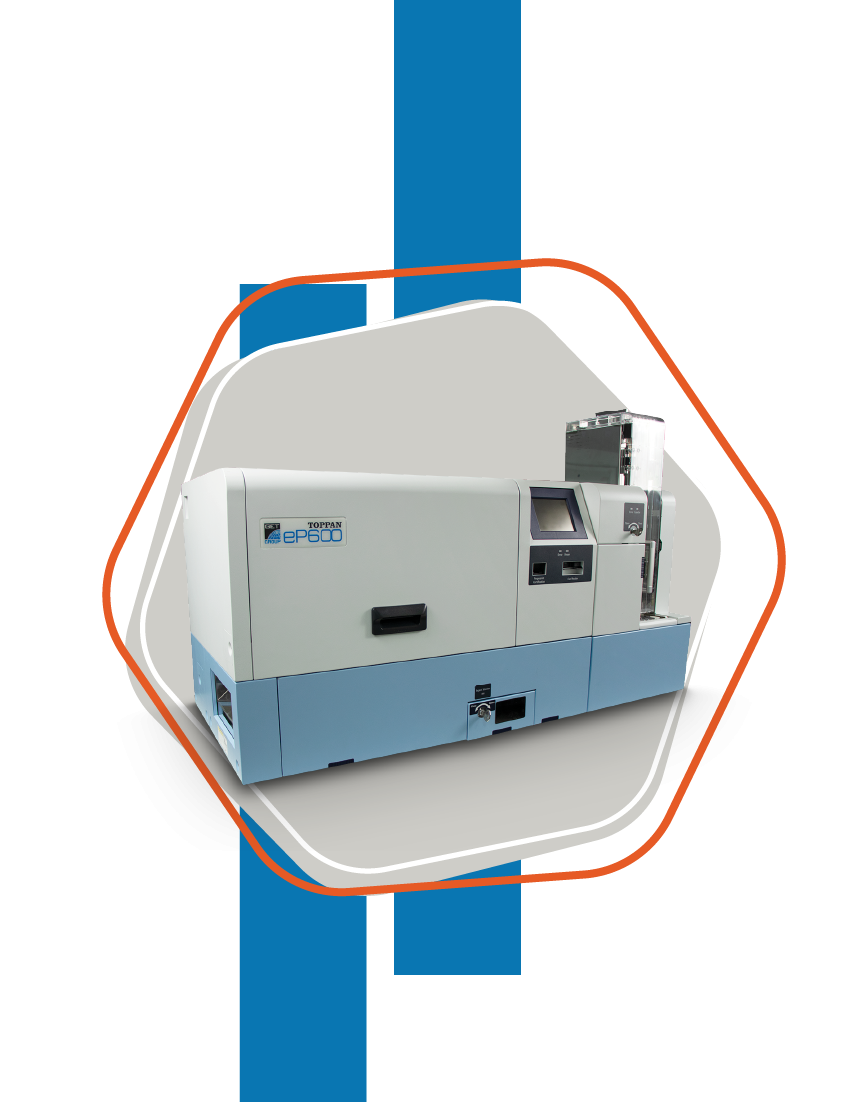

eP600 utilizes innovative printing techniques to issue highly secure and durable travel and identification documents, in a marked shift from traditional printing methods to a significantly more advanced technology. The eP600 has been used in major passport personalization operations around the world, in collaboration with some of the most security-conscious governments.
Main Features
The retransfer printing technology using solid pigment inks protects the personalize datapage using ultra-thin holographic secure film, confirming the lamination as an integral part of the printing process.
Combine a range of 18.6 million colors in the 600-dpi resolution with at least 64 continuous tones for each color to create sharp images, enable advance color saturation to produce customized micro-text of up to 1pt in size.
Unlike Document printed using ordinary dye inks, pigment ink technology provides documents with unparalleled durability to light, chemical reactions, moisture, and other factors that reduce a document’s lifespan.
Unique forensic print pattern using dot-on-dot technology to merge YMC colors, facilitating point-of-use image verification and authenticity protection for personalized documents.
eP600 Solutions Features
An average of 40 seconds per ePassport are sufficient for feeding, verification, encoding, printing, lamination and QA.
Integral and uninterrupted personalization process. Produce a welded, inseparable single personalized data page with high security and durability
Access management to trusted operators with supervisory authority using pre-registered fingerprint and smartcard in addition to secure feeding and rejection.
Independence of datapage substrate type Supports both Paper-based and Polycarbonate-based datapages, in addition to the ability to personalize an additional page in the passport booklet with eP600plus.
Performing an error-free personalization process in a single step through Automated Booklet Number Recognition System, Automatic book feeders and integrated QA to facilitate the optimal automation level required by authorities using eP600 SDK.
Flexible to meet various production needs with decentralize adaptation for enhanced scalability, balanced operation and lower risk of failure and High-Volume centralized issuance environments connecting multiple eP600 printers in a print farm through GET Spooler application.
eP600 Specifications
Pigment ink thermal retransfer printing technology
600 dpi with enhanced color stability feature
An average of 40 seconds per ePassports
Manual or up to 3 lockable automatic book feeders
4.2 Inches full color LCD touch screen
Integrated CCD camera for preprinted/perforated passport number recognition
Secure rejected books Stacker
792mm x 506mm x 573mm
125kg
USB and Ethernet
12 months
RoHS, FCC and CE
Pigment Inks
Pigment ink thermal retransfer printing technology
600 dpi with enhanced color stability feature
An average of 40 seconds per ePassports
Manual or up to 3 lockable automatic book feeders
4.2 Inches full color LCD touch screen
Integrated CCD camera for preprinted/perforated passport number recognition
Secure rejected books Stacker
792mm x 506mm x 573mm
125kg
USB and Ethernet
12 months
RoHS, FCC and CE
Pigment Inks
