Laser Engraving Personalization

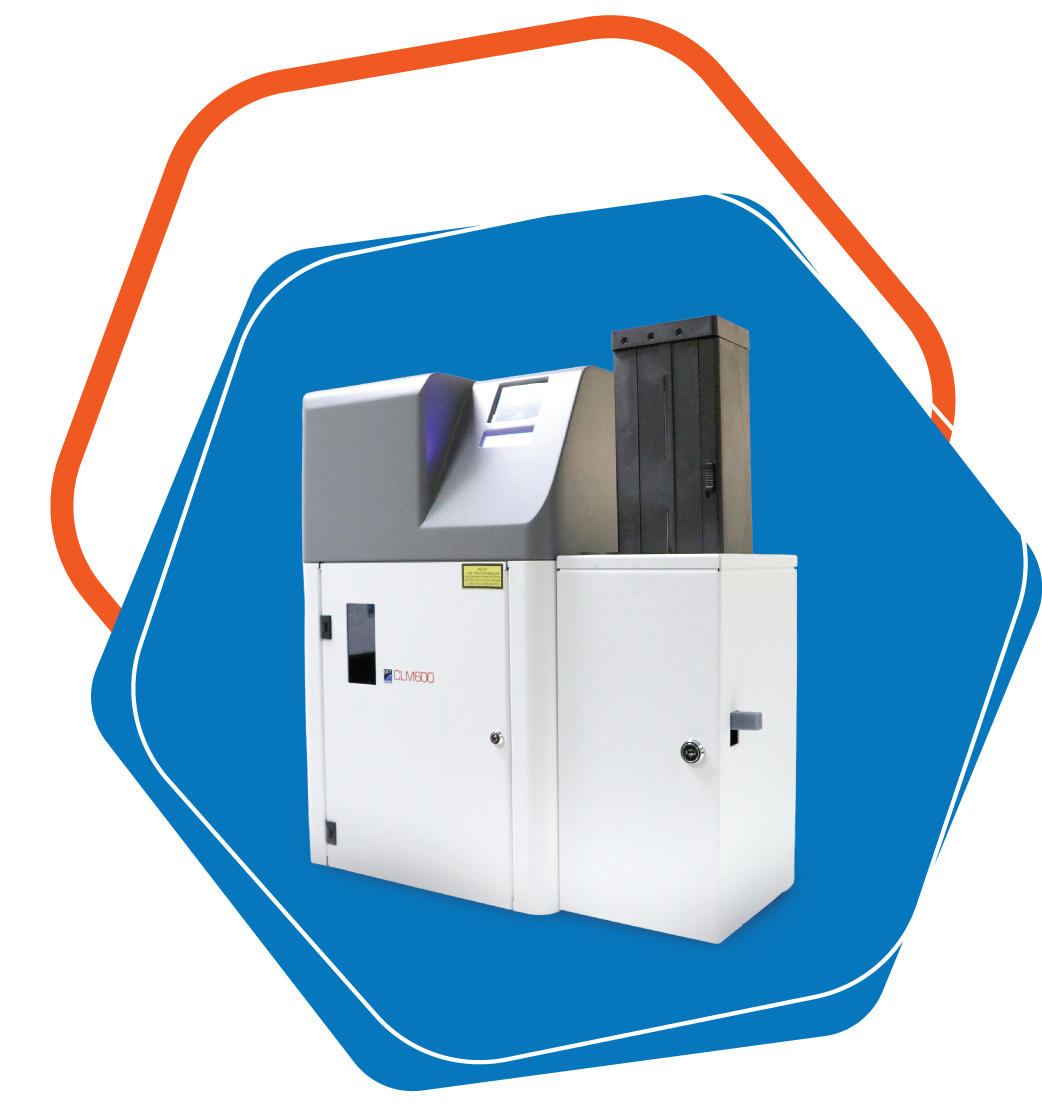

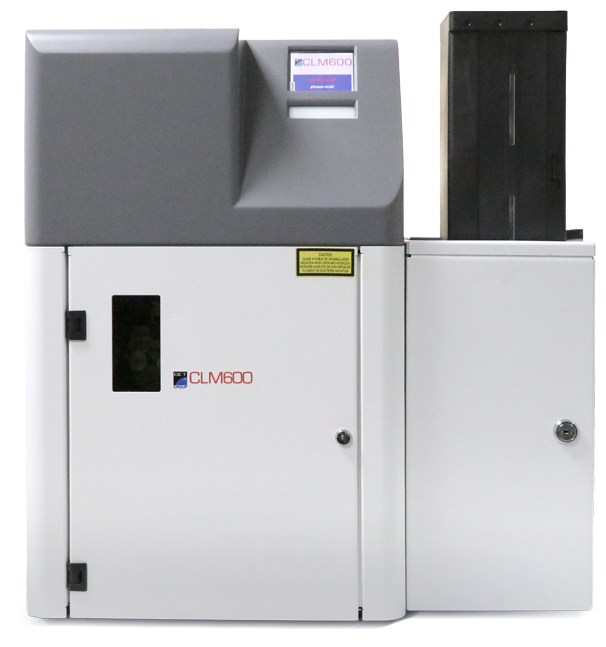

The CLM600 is latest standalone laser personalization system delivers superior precision for ID cards. Designed to integrate easily into any secure issuance workflow, this compact unit enables governments to engrave high-resolution data and security features onto laser engravable ID cards — all with speed and reliability. Available with a high-capacity feeder accommodating either 300 or 500 cards to suit your production needs.
CLM600 Features
CLM600 Specifications
110/220 V AC 50/60 Hz
300 or 500 automatic card feeder
0.3 kW
Vision System
CLI/MLI module
Barcode Reading
Engraving of photo, data, barcodes, graphic elements, CLI/MLI, and Tactile
20 to 26°C room temperature
60 % relative humidity
Black and White camera for XY adjustment
340mm x 310mm x 540mm (W x D x H)
Approx. 29Kg
PC, Approved PVC-L for ID1 Documents
Windows® 10, Windows® 11 (32/64Bit).
Ethernet LAN
Dual Side
Maximum Capacity: 50 Cards
Text marking speed is 5000 mm/s
Picture Marking Speed is 5000 mm/s
up to 600 dpi
20W Fiber laser Source
Key Benefits
Advanced laser engraving produces tamper-resistant personal data and security features.
Achieve crisp 600 dpi engraving for photos, text, barcodes, and graphic elements
Small enough to fit on a standard desktop while maintaining industrial-grade performance
Choose between a 300-card or 500-card feeder to match your throughput requirements
Automated card handling and a secure output stacker reduce operator intervention
Long-life 20W fiber laser source with minimal maintenance requirements
Advanced laser engraving produces tamper-resistant personal data and security features.
Achieve crisp 600 dpi engraving for photos, text, barcodes, and graphic elements
Small enough to fit on a standard desktop while maintaining industrial-grade performance
Choose between a 300-card or 500-card feeder to match your throughput requirements
Automated card handling and a secure output stacker reduce operator intervention
Long-life 20W fiber laser source with minimal maintenance requirements
